C.H.I. Residential Garage Door
Models 2216, 2217, & 4216

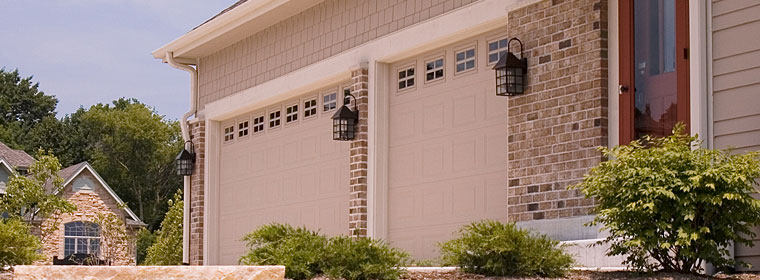

Alliance Garage Doors & Openers -- C.H.I. Residential Garage Door Model 2216

Model 2216 -- Short Raised Steel Panel, Insulated
Model 4216 -- Long Raised Steel Panel, Insulated

Construction

Door exterior sections are formed from 26-gauge galvanized draw quality steel and the interior is 27-gauge steel.

Long-lasting durable rollers assure consistent, efficient operation.

Heavy-duty 14-gauge hinges with "wide body" pattern for greater stability and longer life.

Extra-heavy paint system includes .25 mil. primer with rust inhibitor and a .75 mil. coating of baked-on polyester paint.

Concealed steel plates run continuously from top to bottom of each section for fastening hardware.

Optional white, powder-coated hardware.

White painted end stiles.

Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl.

A continuous weather seal at the section joint assures maximum protection from the elements.

Insulation

High-density polyurethane injected core.

Thermally broken for optimum weather protection.

Insulating R-value of 14

Colors
